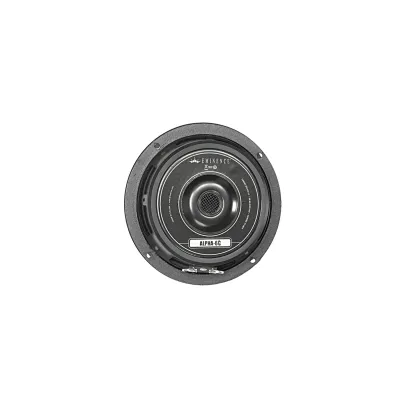

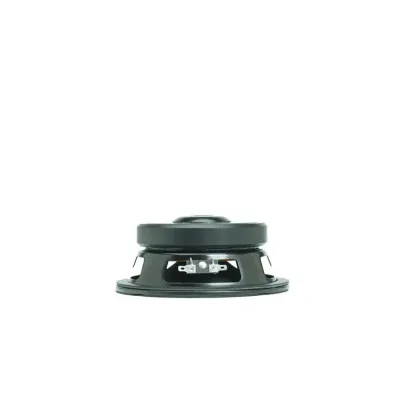

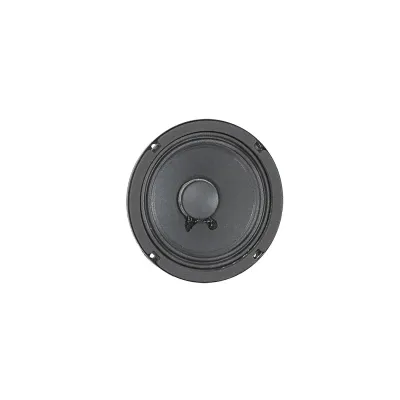

ALPHA-6C 6" American Standard Series Speaker

Recommended for professional audio mid-range applications in a sealed cabinet or as a mid-bass in a vented satellite enclosure.

SPECIFICATION
Nominal Basket Diameter	6", 165 mm
Nominal Impedance*	4 Ω
Power Rating*
Program Power	200 W
Watts	100 W
Resonance	107 Hz

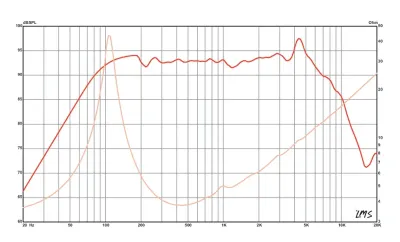

Usable Frequency Range	95 Hz - 5.5 kHz
Sensitivity*	93.3 dB
Magnet Weight	20 oz.
Gap Height	0.25", 6.4 mm
Voice Coil Diameter	1.5", 38 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	107 Hz
DC Resistance (Re)	3.2 Ω
Coil Inductance (Le)	0.28m H
Mechanical Q (Qms)	6.12
Electromagnetic Q (Qes)	0.49
Total Q (Qts)	0.45
Compliance Equivalent Volume (Vas)	5.7 liters / 0.2 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	44 cc
Mechanical Compliance of Suspension (Cms)	0.24 mm/N
BL Product (BL)	6.4 T-M
Diaphragm Mass Inc. Airload (MMs)	9 grams
Efficiency Bandwidth Product (EBP)	221
Maximum Linear Excursion (Xmax)	3.5 mm
Surface Area of Cone (Sd)	126.7 cm2
Maximum Mechanical Limit (Xlim)	4 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	4-23 liters / 0.2-0.8 cu.ft.
Vented	6-11 liters / 0.2-0.4 cu.ft.
Driver Volume Displaced	0.014 cu.ft. / 0.41 liters
Overall Diameter	6.59", 167.4 mm
Baffle Hole Diameter	5.65", 143.5 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.23", 5.8mm
Mounting Holes B.C.D.	6.06", 153.9mm
Depth	2.8", 71.1 mm
Net Weight	4.1 lbs, 1.86 kg
Shipping Weight	4.8 lbs, 2.18 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Composition	Ferrite magnet
Core Details	Vented and extended core

Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Cloth cone edge
Dust Cap Composition	Solid composition paper dust cap
