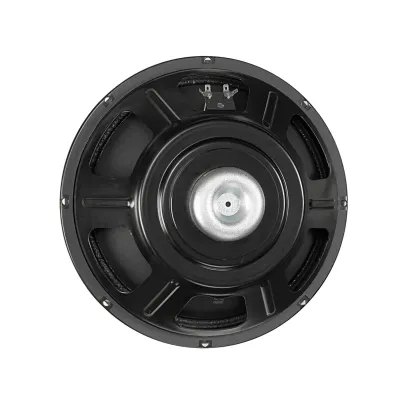

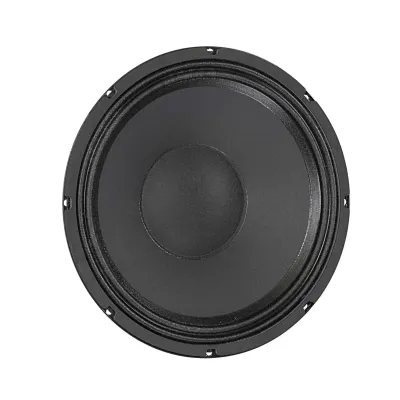

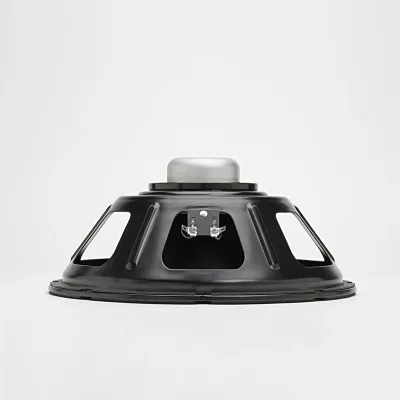

BASSLITE S2012 | 12" Bass Guitar Speaker - Neo

Recommended for bass guitar. Ideal in vented or sealed 1X, 2X, and 4 X12 enclosures.

SPECIFICATION
Nominal Basket Diameter	12", 305 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	300 W
Watts	150 W
Resonance	48 Hz
Usable Frequency Range	49 Hz - 4.5 kHz
Sensitivity*	99 dB
Magnet Weight	4 oz.
Gap Height	0.28", 7.1 mm
Voice Coil Diameter	2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	48 Hz
DC Resistance (Re)	5.1 Ω
Coil Inductance (Le)	0.43m H
Mechanical Q (Qms)	5.5
Electromagnetic Q (Qes)	0.53
Total Q (Qts)	0.48
Compliance Equivalent Volume (Vas)	90.6 liters / 3.2 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	270.1 cc
Mechanical Compliance of Suspension (Cms)	0.24 mm/N
BL Product (BL)	11.7 T-M
Diaphragm Mass Inc. Airload (MMs)	46 grams
Efficiency Bandwidth Product (EBP)	91
Maximum Linear Excursion (Xmax)	5.2 mm
Surface Area of Cone (Sd)	519.5 cm2
Maximum Mechanical Limit (Xlim)	9.8 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.059 cu.ft. / 1.67 liters
Overall Diameter	12.03", 305.6 mm
Baffle Hole Diameter	11.07", 281.2 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.25", 6.4mm
Mounting Holes B.C.D.	11.59", 294.4mm
Depth	5.1", 129.5 mm
Net Weight	4.1 lbs, 1.86 kg
Shipping Weight	5.8 lbs, 2.63 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Composition	Neodymium magnet
Core Details	Non-vented core

Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Cloth cone edge
Dust Cap Composition	Solid composition felt dust cap
