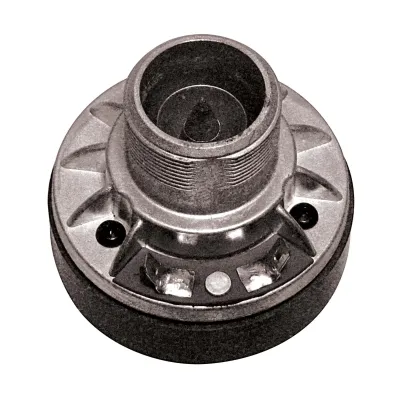

APT 50 1" Throat Size HF Device

Throat Size

1", 25.4mm

Nominal Impedance*

8Ω

Minimum Impedance

7.4 ohm @ 6.1 kHz

Power Rating**

35 W (AES)

Resonance

2.1kHz

Usable Frequency Range

3500Hz-20kHz

Recommended Crossover

3.5 kHz / 12 dBkHz

Sensitivity***

104.7

Magnet Material

Ferrite

Magnet Weight

8oz, 0.23kg

Voice Coil Diameter

1" / 25.4mm

Voice Coil Former

Kapton

Diaphragm Material

Phenolic

DC Resistance (Re)

6.3Ω

Overall Diameter

2.75", 69.8mm

Driver Volume Displaced

0.004 cu.ft., 0.12 liters

Depth

2.53", 64.3mm

Weight

1.7 lbs, 0.8 kg

Mounting Thread

Use Apt Horn or Adaptor

Mounting Holes Diameter

N/A

Mounting Holes B.C.D.

N/A
