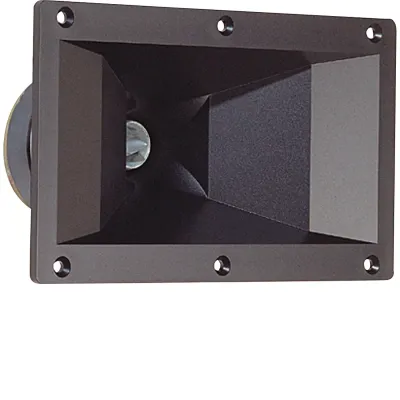

APT 150 7.5"x4.5" HF Device

Type

Constant Directivity

Throat Size

1", 25.4mm

Dispersion

100 x 50

Power Rating

35W (AES)

Nominal impedance

8 Ω

Minimum impedance

7.7 @ 6 kHz

Sensitivity

102.4 dB

Resonance

2.7 kHz

Usable Frequency Range

3500 Hz – 20 kHz

Low Rec. Crossover

3.5 kHz

W x H x D (in)

4.5" x 7.6" x 5.1"

W x H x D (mm)

114.3 x 193 x 129.5mm

Cut Out

6.7 x 3.4 , 170 x 86 mm

Weight

1.9lbs, 0.86kg

Material

ABS
