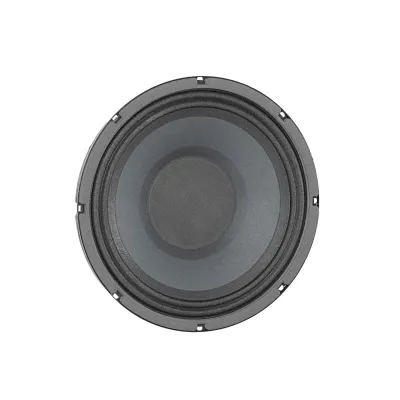

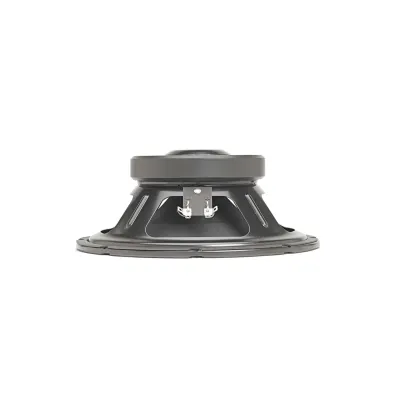

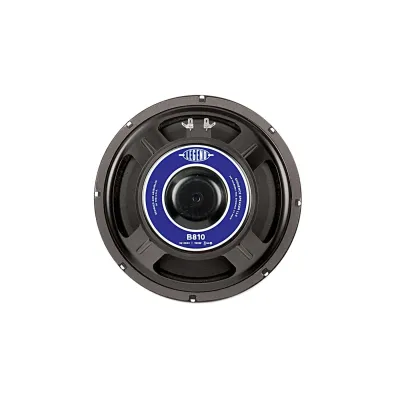

LEGEND B810 | 10" 32 Ohm Bass Guitar Speaker

A 32 ohm, 10 inch bass guitar speaker offering classic sound with modern features. A perfect replacement for your 8x10 cabinet.

SPECIFICATION
Nominal Basket Diameter	10", 254 mm
Nominal Impedance*	32 Ω
Power Rating*
Program Power	300 W
Watts	150 W
Resonance	52 Hz

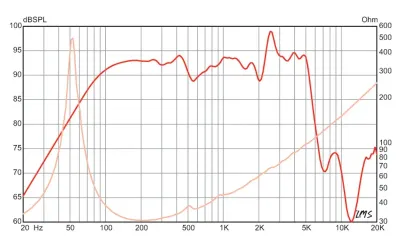

Usable Frequency Range	49 Hz - 5.1 kHz
Sensitivity*	92.7 dB
Magnet Weight	30 oz.
Gap Height	0.312", 7.9 mm
Voice Coil Diameter	2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	52 Hz
DC Resistance (Re)	27.5 Ω
Coil Inductance (Le)	2.72m H
Mechanical Q (Qms)	13.91
Electromagnetic Q (Qes)	0.68
Total Q (Qts)	0.65
Compliance Equivalent Volume (Vas)	66.4 liters / 2.34 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	165.2 cc
Mechanical Compliance of Suspension (Cms)	0.39 mm/N
BL Product (BL)	17.7 T-M
Diaphragm Mass Inc. Airload (MMs)	24 grams
Efficiency Bandwidth Product (EBP)	77
Maximum Linear Excursion (Xmax)	4.7 mm
Surface Area of Cone (Sd)	350.1 cm2
Maximum Mechanical Limit (Xlim)	9.5 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.039 cu.ft. / 1.1 liters
Overall Diameter	10.11", 256.8 mm
Baffle Hole Diameter	9.13", 231.9 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.23", 5.8mm
Mounting Holes B.C.D.	9.6", 243.8mm
Depth	4.08", 103.6 mm
Net Weight	6.7 lbs, 3.04 kg
Shipping Weight	7.9 lbs, 3.58 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Kapton former
Magnet Composition	Ferrite magnet
Core Details	Bumped

Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Cloth cone edge
Dust Cap Composition	Zurette dust cap
