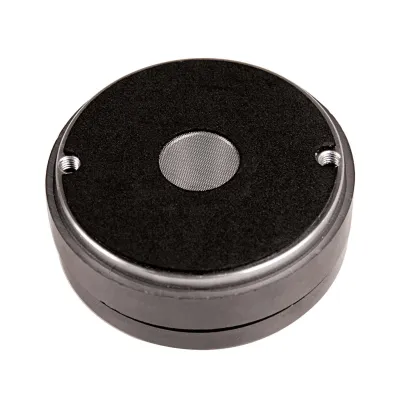

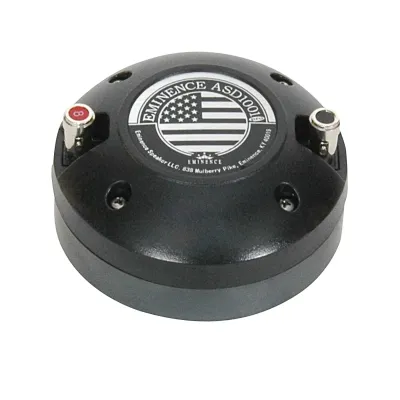

ASD 1001B 1" Throat Size bolt-on HF Device

Throat Size

1", 25.4mm

Nominal Impedance*

8Ω

Minimum Impedance

7.6 ohm @ 2.3 kHz

Power Rating**

50 W (EIA-426A)

Resonance

0.59kHz

Usable Frequency Range

2500Hz-20kHz

Recommended Crossover

2.5 kHz / 18 dBkHz

Sensitivity***

104.1

Magnet Material

Ferrite

Magnet Weight

12oz, 0.34kg

Voice Coil Diameter

1.3" / 33mm

Voice Coil Former

Aluminum

Diaphragm Material

Titanium

DC Resistance (Re)

6.7Ω

Overall Diameter

3.5", 88.9mm

Driver Volume Displaced

0.009 cu.ft., 0.26 liters

Depth

2", 50.8mm

Weight

1.7 lbs, 0.8 kg

Mounting Thread

N/A

Mounting Holes Diameter

2X M6

Mounting Holes B.C.D.

3 in. 76.2 mm
