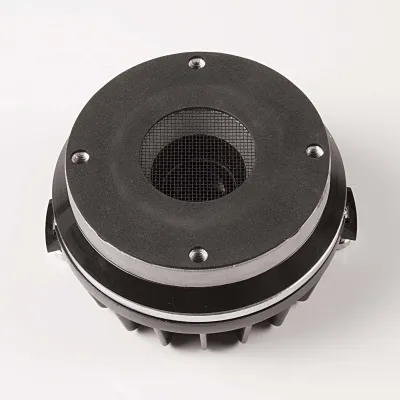

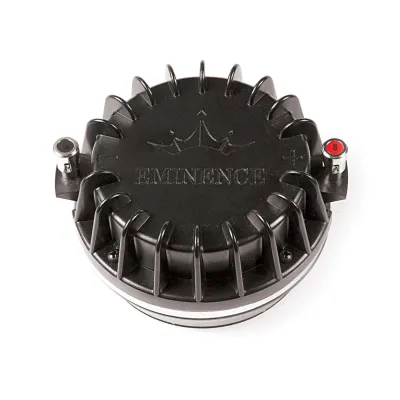

N320T-8 2" Throat Size HF Device - Neodymium
$244.99
$274.9911% offHF DEVICE
The 2 in. exit N320T-8 sets a new standard in compression drivers from Eminence. Featuring D3 technology (Damped Diametric Drive), a 3 in. voice coil, and lightweight neodymium ring magnet with copper shorting ring, the N320T-8 offers an ultra-clean sound and low crossover point.
SPECIFICATION | |
Throat Size | 2", 50.8mm |
Nominal Impedance* | 8Ω |
Minimum Impedance | 6.7 ohm @ 3.6 kHz |
Power Rating** | 100 W (AES) |
Resonance | 0.52kHz |
Usable Frequency Range | 800Hz-20kHz |
Recommended Crossover | 800 Hz / 12 dBkHz |
Sensitivity*** | 110.4 |
Magnet Material | Neodymium |
Magnet Weight | 11oz, 0.31kg |
Voice Coil Diameter | 3" / 76.2mm |
Voice Coil Former | Polyimide |
Diaphragm Material | Titanium |
DC Resistance (Re) | 4.8Ω |
MOUNTING INFORMATION | |
Overall Diameter | 5.72", 145.3mm |
Driver Volume Displaced | 0.02 cu.ft., 0.8 liters |
Depth | 3.1", 78.7mm |
Weight | 5 lbs, 2.3 kg |
Mounting Thread | N/A |
Mounting Holes Diameter | 4X 1/4-20 |
Mounting Holes B.C.D. | 4 in. 101.6 mm |
