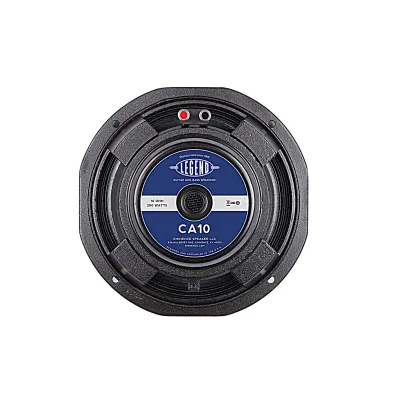

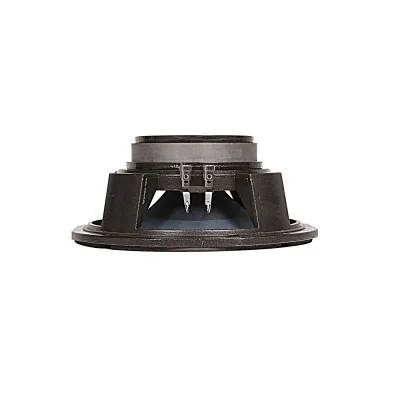

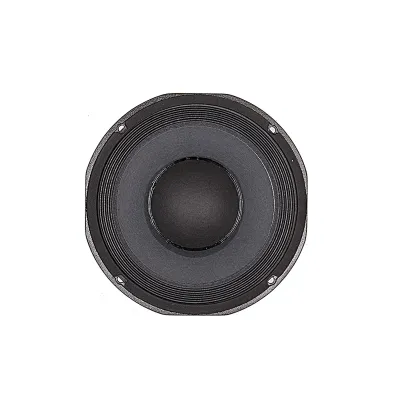

LEGEND CA10-8 10" Bass Guitar Speaker

Made famous as an OEM model in many popular bass guitar cabinet brands, this highly sought after design features a truncated cast frame chassis for tight fitting in your 2x, 4x and 8x10 cabinet. Loud and clear bass guitar tone with legendary growl.

SPECIFICATION
Nominal Basket Diameter	10", 254 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	400 W
Watts	200 W
Resonance	53 Hz

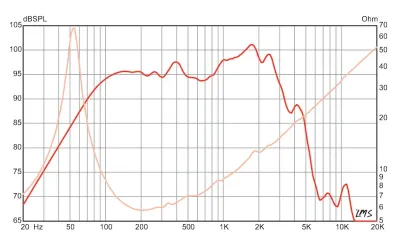

Usable Frequency Range	50 Hz - 3 kHz
Sensitivity*	96.3 dB
Magnet Weight	38 oz.
Gap Height	0.312", 7.9 mm
Voice Coil Diameter	2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	53 Hz
DC Resistance (Re)	4.83 Ω
Coil Inductance (Le)	0.51m H
Mechanical Q (Qms)	6.53
Electromagnetic Q (Qes)	0.49
Total Q (Qts)	0.45
Compliance Equivalent Volume (Vas)	51.05 liters / 1.8 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	105.7 cc
Mechanical Compliance of Suspension (Cms)	0.3 mm/N
BL Product (BL)	10.07 T-M
Diaphragm Mass Inc. Airload (MMs)	31 grams
Efficiency Bandwidth Product (EBP)	109
Maximum Linear Excursion (Xmax)	3.02 mm
Surface Area of Cone (Sd)	350.1 cm2
Maximum Mechanical Limit (Xlim)	7 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	N/a
Vented	Acceptable
Driver Volume Displaced	0.043 cu.ft. / 1.22 liters
Overall Diameter	10.5", 266.7 mm
Baffle Hole Diameter	9.01", 228.9 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0", 0mm
Mounting Holes B.C.D.	0", 0mm
Depth	0", 0 mm
Net Weight	8.8 lbs, 3.99 kg
Shipping Weight	9.7 lbs, 4.4 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Kapton former
Magnet Composition	Ferrite magnet
Core Details	Vented and extended core

Basket Materials	Die-cast aluminum basket
Cone Composition	Paper cone
Cone Edge Composition	Cloth cone edge
Dust Cap Composition	Treated paper dust cap
