LEGEND CA1059 10" Bass Guitar Speaker

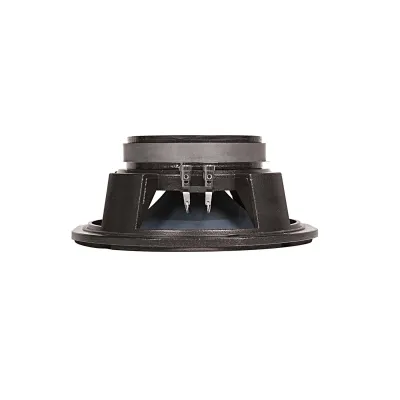

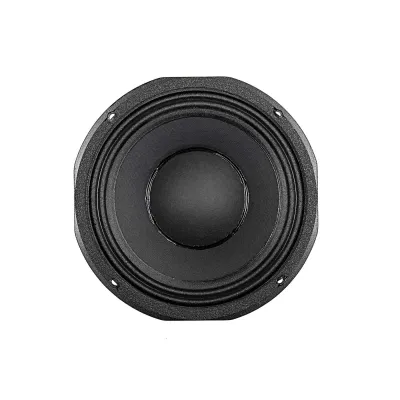

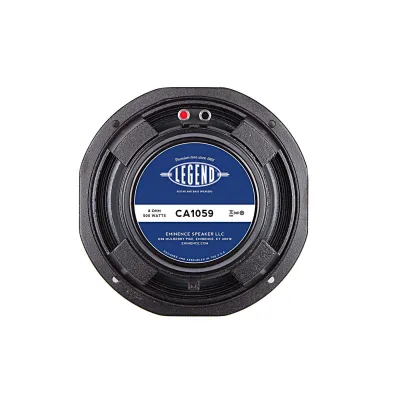

A larger magnet version of the popular Legend CA10, the Legend CA1059 is a 10 inch cast-frame bass guitar speaker with a proven track record as THE speaker for punch and clarity in many famous OEM cabinets throughout the decades. Like the CA10, the CA1059?s chassis is truncated on the sides for tight fitting in 2x, 4x, and 8x10 configurations. Along with higher Xmax, the CA1059 also features a larger 59 oz. ferrite magnet, producing higher efficiency, and lower Qts for dampening than its smaller magnet version.

SPECIFICATION
Nominal Basket Diameter	10", 0 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	500 W
Watts	250 W
Resonance	48 Hz

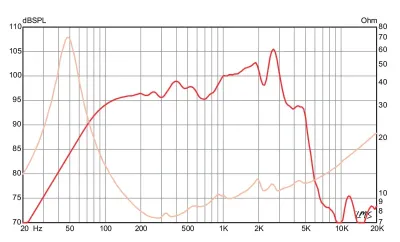

Usable Frequency Range	50 Hz - 3.2 kHz
Sensitivity*	98.7 dB
Magnet Weight	59 oz.
Gap Height	0.313", 8 mm
Voice Coil Diameter	2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	48 Hz
DC Resistance (Re)	5.53 Ω
Coil Inductance (Le)	0.11m H
Mechanical Q (Qms)	3.27
Electromagnetic Q (Qes)	0.28
Total Q (Qts)	0.26
Compliance Equivalent Volume (Vas)	71.47 liters / 2.52 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	165.3 cc
Mechanical Compliance of Suspension (Cms)	0.42 mm/N
BL Product (BL)	12.54 T-M
Diaphragm Mass Inc. Airload (MMs)	27 grams
Efficiency Bandwidth Product (EBP)	169
Maximum Linear Excursion (Xmax)	4.72 mm
Surface Area of Cone (Sd)	350.1 cm2
Maximum Mechanical Limit (Xlim)	8 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Not Recommended
Vented	0.6 cu. ft. to 2.9 cu. ft.
Driver Volume Displaced	0.061 cu.ft. / 1.72 liters
Overall Diameter	10.5", 266.7 mm
Baffle Hole Diameter	9.01", 228.9 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.32", 8.1mm
Mounting Holes B.C.D.	9.71", 246.5mm
Depth	4.53", 115.1 mm
Net Weight	11.2 lbs, 5.08 kg
Shipping Weight	12.7 lbs, 5.76 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Edge wound Aluminum Voice Coil
Coil Former	Polyimide former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core

Basket Materials	Die-cast aluminum basket
Cone Composition	Cloth cone edge
Cone Edge Composition	Cloth cone edge
Dust Cap Composition	Paper dust cap
