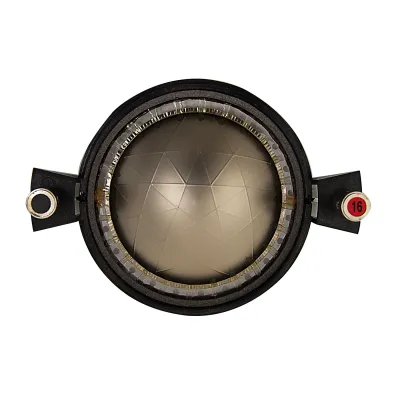

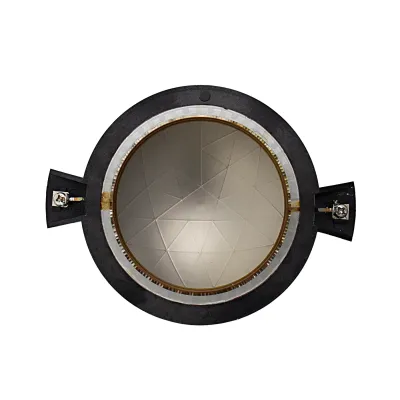

N314T-16DIA 1.4" Throat Size HF Device - Diaphragms

Throat Size

1.4", 35.6mm

Nominal Impedance*

16Ω

Minimum Impedance

13.1 ohm @ 4.4 kHz

Power Rating**

100 W (AES)

Resonance

0.729kHz

Usable Frequency Range

800Hz-20kHz

Recommended Crossover

800 Hz / 12 DbkHz

Sensitivity***

110.6

Magnet Material

Neodymium

Magnet Weight

11oz, .31kg

Voice Coil Diameter

3" / 76.2mm

Voice Coil Former

Polyimide

Diaphragm Material

Titanium

DC Resistance (Re)

10Ω

Overall Diameter

5.72", 145.3mm

Driver Volume Displaced

0.02 cu.ft., 0.66 liters

Depth

2.53", 64.3mm

Weight

4.8 lbs, 2.2 kg

Mounting Thread

N/A

Mounting Holes Diameter

4X 1/4-20

Mounting Holes B.C.D.

4 in. 101.6 mm
