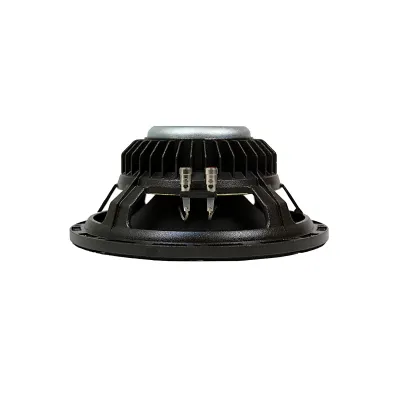

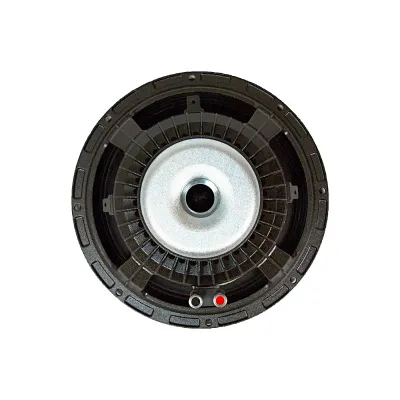

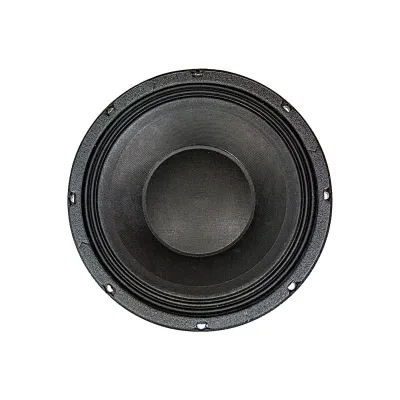

KAPPALITE™ KL3010CX-8 10" Neodymium Series Coaxial Speaker

Nominal Basket Diameter

10", 254 mm

Nominal Impedance*

8 Ω

Power Rating*

800 W

400 W

Resonance

55 Hz

Usable Frequency Range

50 Hz - 3.7 kHz

Sensitivity*

92 dB

Magnet Weight

11 oz.

Gap Height

0.365", 9.27 mm

Voice Coil Diameter

3", 76 mm

Resonant Frequency (fs)

52 Hz

DC Resistance (Re)

5.71 Ω

Coil Inductance (Le)

0.62m H

Mechanical Q (Qms)

5.87

Electromagnetic Q (Qes)

0.3

Total Q (Qts)

0.28

Compliance Equivalent Volume (Vas)

41.41 liters / 1.46 cu.ft.

Peak Diaphragm Displacement Volume (Vd)

248 cc

Mechanical Compliance of Suspension (Cms)

0.21 mm/N

BL Product (BL)

16.8 T-M

Diaphragm Mass Inc. Airload (MMs)

45 grams

Efficiency Bandwidth Product (EBP)

175

Maximum Linear Excursion (Xmax)

6.58 mm

Surface Area of Cone (Sd)

376.9 cm2

Maximum Mechanical Limit (Xlim)

17.84 mm

Recommended Enclosure Volume

N/a

Acceptable

Driver Volume Displaced

0.037 cu.ft. / 1.06 liters

Overall Diameter

10.25", 260.35 mm

Baffle Hole Diameter

9.12", 231.65 mm

Front Sealing Gasket

Yes

Rear Sealing Gasket

Yes

Mounting Holes Diameter

0.29", 7.366mm

Mounting Holes B.C.D.

9.73", 247.14mm

Depth

4.5625", 115.887 mm

Net Weight

6.8 lbs, 3.08 kg

Shipping Weight

8.6 lbs, 3.9 kgs

Coil Construction

Copper voice coil

Coil Former

Fiberglass former

Magnet Composition

Neodymium magnet

Core Details

Tapered coax

Basket Materials

Die-cast aluminum basket

Cone Composition

Treated paper cone

Cone Edge Composition

Sealed cloth edge

Dust Cap Composition

Zurette dust cap
