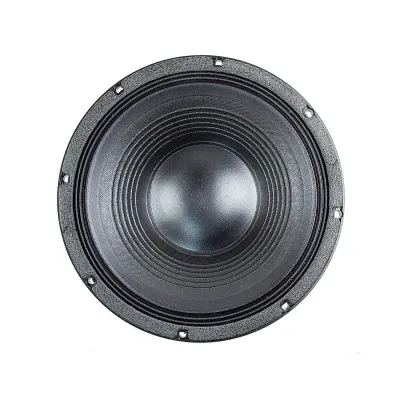

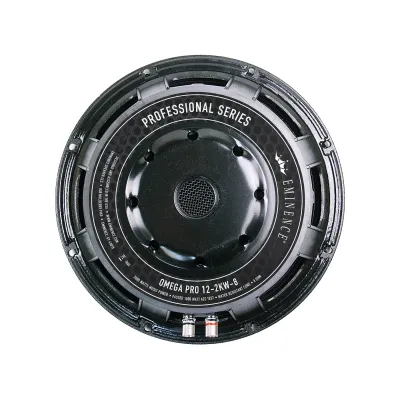

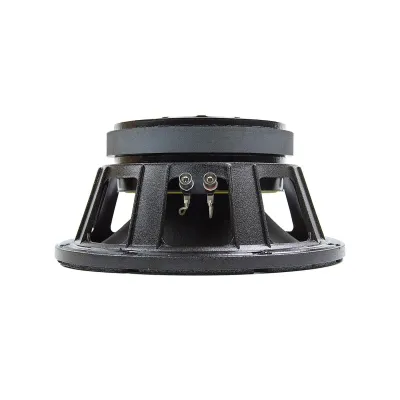

OMEGA PRO-12-2KW-8 12" Professional Series Speaker

What’s inside the Eminence Omega Pro 12-2KW-8? We could bore you with details about the high-power double layer, inside/outside wound copper coil with fiberglass former, weatherproofing treatments, or carefully optimized components. Still, we’re not getting any younger, and neither are you! Incorporated in the Eminence Omega Pro 12-2KW-8 is the experience you can trust derived from fifty-seven years of using, designing, and making loudspeakers.

Here’s why you need the Eminence Omega Pro 12-2KW-8. You’ll forget about lugging those extra subs around because your mains can’t go there. The Omega Pro 12-2KW-8 gets low in those small vented boxes and has 4,000W (peak) AES power handling potential to ensure they get loud.

Not only are the parameters carefully selected to stand alone in the tiny tops of today, but Eminence specifically tailored their smooth frequency responses for the most manageable passive or active network designs you will ever encounter. Eminence engineers invested great care to ensure these drivers do the job for many years to come.

Features include:

2000 W Program Power
4,000W (peak) AES
12” Nominal Diameter
8 Ω
Water Resistant Cone and Dust-cap

SPECIFICATION
Nominal Basket Diameter	12", 304.8 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	2000 W
Watts	1000 W
Resonance	48.14 Hz

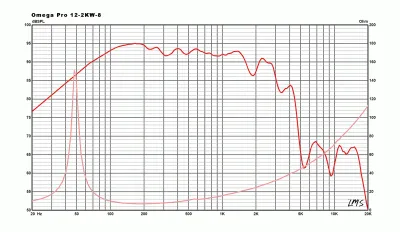

Usable Frequency Range	42 Hz - 1.6 kHz
Sensitivity*	93.33 dB
Magnet Weight	109 oz.
Gap Height	0.375", 9.5 mm
Voice Coil Diameter	4", 101.6 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	48.14 Hz
DC Resistance (Re)	6.04 Ω
Coil Inductance (Le)	1.13 m H
Mechanical Q (Qms)	14.88
Electromagnetic Q (Qes)	0.40
Total Q (Qts)	0.39
Compliance Equivalent Volume (Vas)	49.55 liters / 1.75 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	387 cc
Mechanical Compliance of Suspension (Cms)	0.12 mm/N
BL Product (BL)	20.40 T-M
Diaphragm Mass Inc. Airload (MMs)	91.96 grams
Efficiency Bandwidth Product (EBP)	119.2
Maximum Linear Excursion (Xmax)	7.1 mm
Surface Area of Cone (Sd)	545.4 cm2
Maximum Mechanical Limit (Xlim)	19.6 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	N/a
Vented	31.15-87.78 liters / 1.1-3.1 cu.ft.
Driver Volume Displaced	183 cu.in. / 3 liters
Overall Diameter	12.38", 314.45 mm
Baffle Hole Diameter	11.06", 280.92 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	No
Mounting Holes Diameter	0.28", 7.112mm
Mounting Holes B.C.D.	11.7", 297.18mm
Depth	6.04", 153.416 mm
Net Weight	21.8 lbs, 9.89 kg
Shipping Weight	23.8 lbs, 10.8 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Inside/outside copper voice coil
Coil Former	Fiberglass former
Magnet Composition	Ferrite magnet
Core Details	Vented and extended core
Backplate Details	Vented
Basket Materials	Die-cast aluminum basket
Cone Composition	Water-resistant treated paper cone
Cone Edge Composition	Cloth cone edge
Dust Cap Composition	Water-resistant treated dust cap
