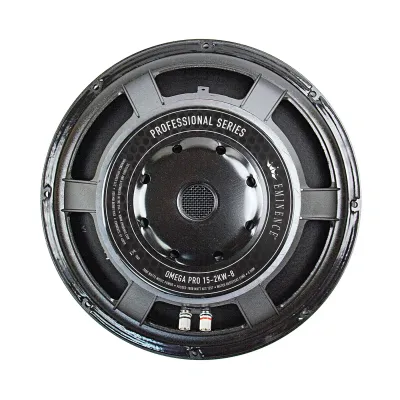

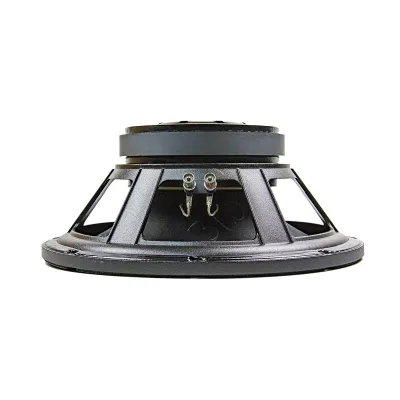

OMEGA PRO-15-2KW-8 15" Professional Series Speaker

Name: OMEGA PRO-15-2KW-8 15" Professional Series Speaker
Author: Matt | Dixie Speaker

What’s inside the Eminence Omega Pro 15-2KW-8? We could bore you with details about the high-power double layer, inside/outside wound copper coil with fiberglass former, weatherproofing treatments, or carefully optimized components. Still, we’re not getting any younger, and neither are you! Incorporated in the Eminence Omega Pro 15-2KW-8 is the experience you can trust derived from fifty-seven years of using, designing, and making loudspeakers.

Here’s why you need the Eminence Omega Pro 15-2KW-8. You’ll forget about lugging those extra subs around because your mains can’t go there. Omega Pro 2KW’s get low in those small vented boxes, with 4,000W (peak) AES power handling potential to ensure they get loud too. Not only are the parameters carefully selected to stand alone in the tiny tops of today, but Eminence specifically tailored their smooth frequency responses for the most manageable passive or active network designs you will ever encounter. Eminence engineers invested great care to ensure these drivers do the job for many years to come.

SPECIFICATION
Nominal Basket Diameter	15", 381 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	2000 W
Watts	1000 W
Resonance	39.67 Hz

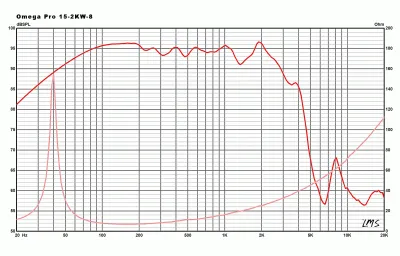

Usable Frequency Range	39 Hz - 1.245 kHz
Sensitivity*	94.9 dB
Magnet Weight	109 oz.
Gap Height	0.375", 9.5 mm
Voice Coil Diameter	4", 101.6 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	39.67 Hz
DC Resistance (Re)	5.95 Ω
Coil Inductance (Le)	1.13 m H
Mechanical Q (Qms)	13.9
Electromagnetic Q (Qes)	0.46
Total Q (Qts)	0.44
Compliance Equivalent Volume (Vas)	142.51 liters / 5.03 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	634 cc
Mechanical Compliance of Suspension (Cms)	0.14 mm/N
BL Product (BL)	19.07 T-M
Diaphragm Mass Inc. Airload (MMs)	111.87 grams
Efficiency Bandwidth Product (EBP)	86.96
Maximum Linear Excursion (Xmax)	7.4 mm
Surface Area of Cone (Sd)	856.3 cm2
Maximum Mechanical Limit (Xlim)	13 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	N/a
Vented	77.87-198.22 liters / 2.75-7 cu.ft.
Driver Volume Displaced	263 cu.in. / 4.31 liters
Overall Diameter	15.24", 387.1 mm
Baffle Hole Diameter	14", 355.6 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.275", 6.985mm
Mounting Holes B.C.D.	14.56", 369.8mm
Depth	6.42", 163 mm
Net Weight	22 lbs, 9.98 kg
Shipping Weight	26 lbs, 11.79 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Inside/outside Copper voice coil
Coil Former	Fiberglass former
Magnet Composition	Ferrite magnet
Core Details	Vented and extended core
Backplate Details	Vented
Basket Materials	Die-cast aluminum basket
Cone Composition	Water-resistant treated paper cone
Cone Edge Composition	Cloth cone edge
Dust Cap Composition	Water-resistant treated dust cap
