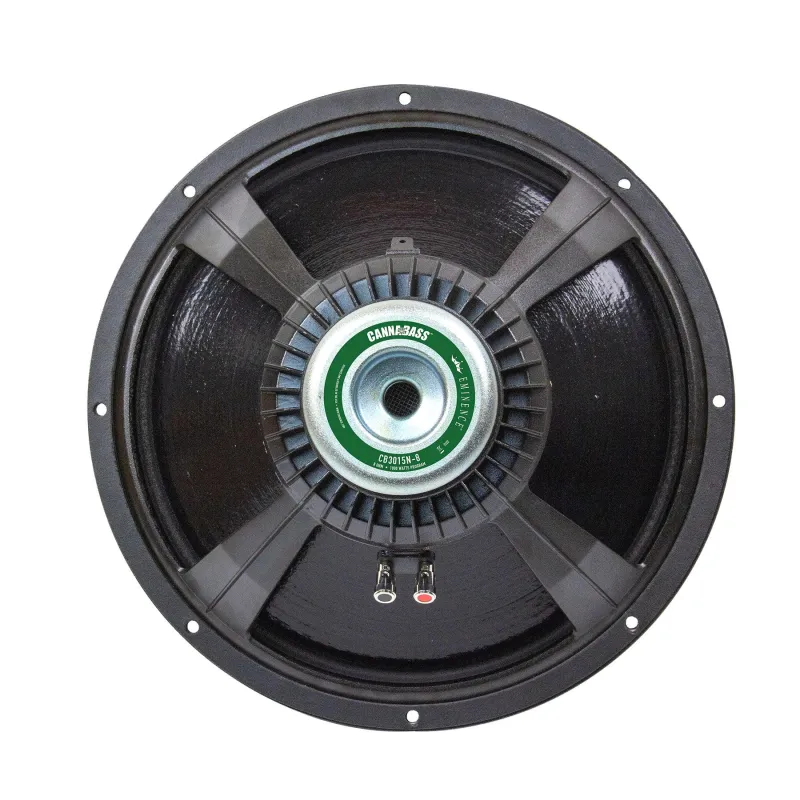

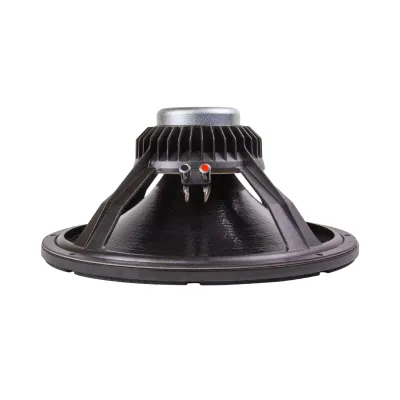

CannaBass™ CB3015N-8
$279.99
$309.9910% offCannabass Series
Eminence is proud to introduce the CannaBass™ CB3015N-8. Engineered with the modern player in mind, the CB3015N-8 features organic and natural damping properties delivering a cleaner, more authentic sound through a unique combination of cutting-edge speaker technology, the superior qualities of a hemp dust cap, and a proprietary CBD coating.

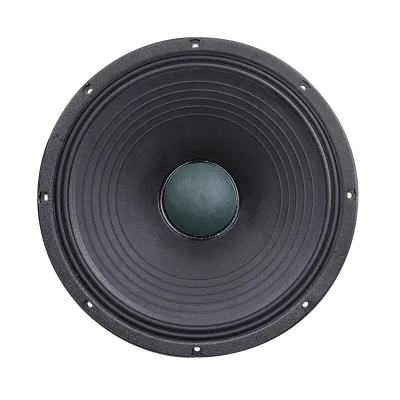

The CannaBass™ CB3015N-8’s black paper cone features a CBD coating on the back that supplies a damping quality and enhances the smooth frequency response. The natural material in the green hemp dust cap makes it an eco-friendly choice and provides additional natural damping for the CB3015N-8, creating a more pristine sound.
The CannaBass™ CB3015N-8 is ideal for players who demand the best sound quality. Featuring a high-temperature Neo magnet, the CannaBass™ CB3010N-8 is powerful and lightweight yet durable, offering a steady flux field that ensures high-quality sound. With a 7.22mm xMax and 1000-watt music power rating (500W EIA), the CB3015N-8 is expertly voiced to provide a loud, low distortion, low-frequency range. It delivers a powerful, high-quality sound that is perfect for modern musicians. Additionally, our three-inch inside/outside wound voice coil on a vented fiberglass bobbin provides lower power compression and distortion for a more accurate and authentic sound.
SPECIFICATION | |
Nominal Basket Diameter | 15", 381 mm |
Nominal Impedance* | 8 Ω |
Power Rating* | |
Program Power | 1000 W |
Watts | 500 W |
Resonance | 40.67 Hz |

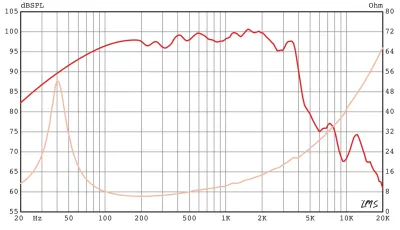

Usable Frequency Range | 40 Hz - 3.7 kHz |
Sensitivity* | 98.1 dB |
Magnet Weight | 11 oz. |
Gap Height | 0.365", 9.27 mm |
Voice Coil Diameter | 3", 76.2 mm |
THIELE & SMALL PARAMETERS | |
Resonant Frequency (fs) | 40.67 Hz |
DC Resistance (Re) | 5.50 Ω |
Coil Inductance (Le) | 0.59m H |
Mechanical Q (Qms) | 3.6 |
Electromagnetic Q (Qes) | 0.43 |
Total Q (Qts) | 0.39 |
Compliance Equivalent Volume (Vas) | 162.87 liters / 5.75 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 618.25 cc |
Mechanical Compliance of Suspension (Cms) | 0.16 mm/N |
BL Product (BL) | 17.76 T-M |
Diaphragm Mass Inc. Airload (MMs) | 96.75 grams |
Efficiency Bandwidth Product (EBP) | 94.34 |
Maximum Linear Excursion (Xmax) | 7.22 mm |
Surface Area of Cone (Sd) | 856.3 cm2 |
Maximum Mechanical Limit (Xlim) | 14.2 mm |
MOUNTING INFORMATION | |
Recommended Enclosure Volume | |
Sealed | Not Recommended |
Vented | Acceptable |
Driver Volume Displaced | 155.52 cu.in. / 2.56 liters |
Overall Diameter | 15.32", 389.13 mm |
Baffle Hole Diameter | 14.03", 356.36 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.28", 7.112mm |
Mounting Holes B.C.D. | 14.56", 389.82mm |
Depth | 7.1", 180.34 mm |
Net Weight | 8.2 lbs, 3.72 kg |
Shipping Weight | 10.4 lbs, 4.72 kgs |
MATERIALS OF CONSTRUCTION | |
Coil Construction | Inside/Outside copper voice coil |
Coil Former | Fiberglass former |
Magnet Composition | Neodymium magnet |
Core Details | Vented core |
|
|
Basket Materials | Cast Aluminum Basket |
Cone Composition | CBD treated paper cone |
Cone Edge Composition | Cloth cone edge |
Dust Cap Composition | Hempylene paper dustcap |
