Nominal Basket Diameter

15", 381 mm

Nominal Impedance*

8 Ω

Power Rating*

1200 W

600 W

Resonance

39 Hz

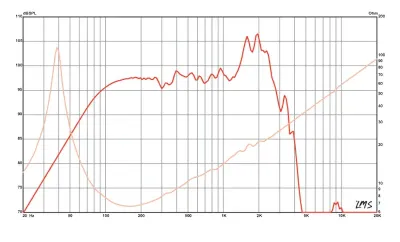

Usable Frequency Range

38 Hz - 2.7 kHz

Sensitivity*

99 dB

Magnet Weight

95 oz.

Gap Height

0.375", 9.5 mm

Voice Coil Diameter

3", 76 mm

Resonant Frequency (fs)

39 Hz

DC Resistance (Re)

5.4 Ω

Coil Inductance (Le)

1.27m H

Mechanical Q (Qms)

6.08

Electromagnetic Q (Qes)

0.41

Total Q (Qts)

0.38

Compliance Equivalent Volume (Vas)

159 liters / 5.62 cu.ft.

Peak Diaphragm Displacement Volume (Vd)

471 cc

Mechanical Compliance of Suspension (Cms)

0.15 mm/N

BL Product (BL)

18.6 T-M

Diaphragm Mass Inc. Airload (MMs)

105 grams

Efficiency Bandwidth Product (EBP)

95

Maximum Linear Excursion (Xmax)

5.5 mm

Surface Area of Cone (Sd)

856.3 cm2

Maximum Mechanical Limit (Xlim)

10.4 mm

Recommended Enclosure Volume

N/a

62-193 liters / 2.2-6.8 cu.ft.

Driver Volume Displaced

0.145 cu.ft. / 4.12 liters

Overall Diameter

15.16", 385.1 mm

Baffle Hole Diameter

13.87", 352.3 mm

Front Sealing Gasket

Yes

Rear Sealing Gasket

Yes

Mounting Holes Diameter

0.25", 6.4mm

Mounting Holes B.C.D.

14.56", 369.8mm

Depth

6.38", 162.1 mm

Net Weight

20 lbs, 9.07 kg

Shipping Weight

22.3 lbs, 10.12 kgs

Coil Construction

Copper voice coil

Coil Former

Polyimide former

Magnet Composition

Ferrite magnet

Core Details

Vented core

Basket Materials

Pressed steel basket

Cone Composition

Paper cone

Cone Edge Composition

Cloth cone edge

Dust Cap Composition

Solid composition paper dust cap
