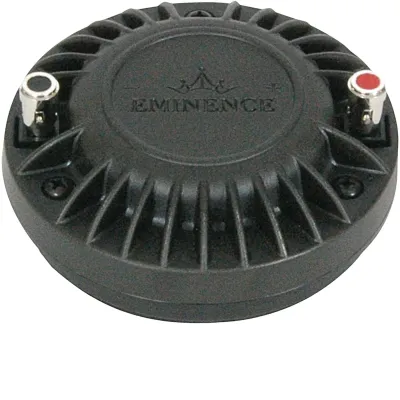

NSD 2005S-16 1" Throat Size HF Device - Neodymium

Throat Size

1", 25.4mm

Nominal Impedance*

16Ω

Minimum Impedance

Power Rating**

50 W (AES)

Resonance

0.578kHz

Usable Frequency Range

1500Hz-20kHz

Recommended Crossover

12dB/oct @1.5kHz

Sensitivity***

109 db

Magnet Material

Neodymium

Magnet Weight

4.16 oz.

Voice Coil Diameter

2" 50.8mm

Voice Coil Former

Polyimide

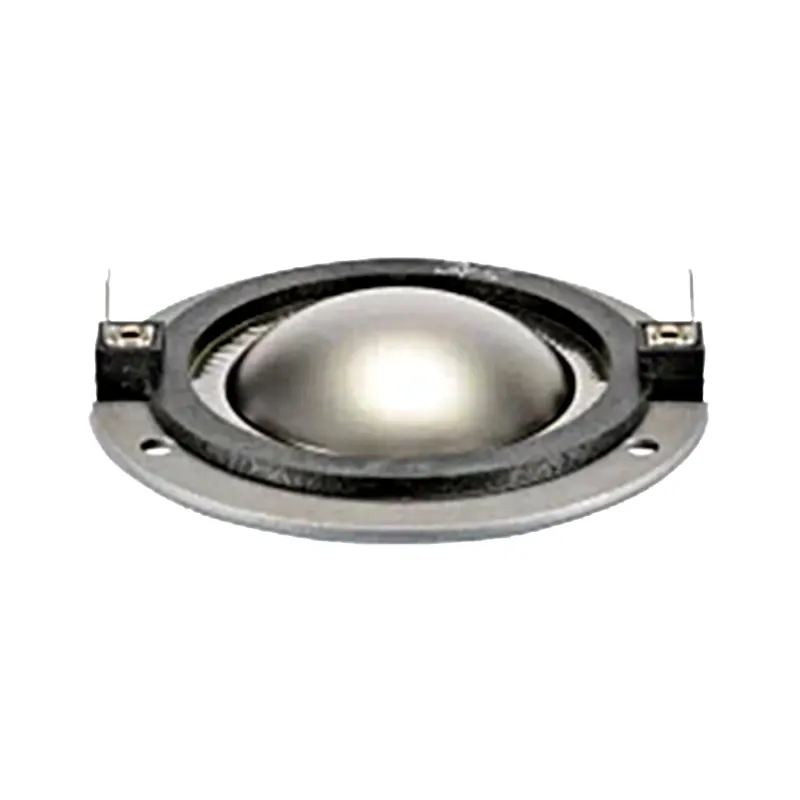

Diaphragm Material

Titanium

DC Resistance (Re)

Overall Diameter

3.87”, 98.3mm

Driver Volume Displaced

13.63 cu. in.

Depth

2", 50.8mm

Weight

1.7 lbs, 0.8 kg

Mounting Thread

N/A

Mounting Holes Diameter

2X 1/4-20

Mounting Holes B.C.D.

3 in. 76.2 mm
