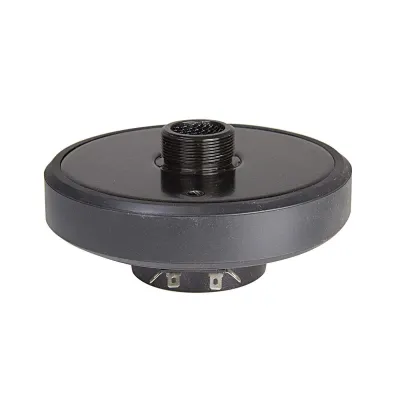

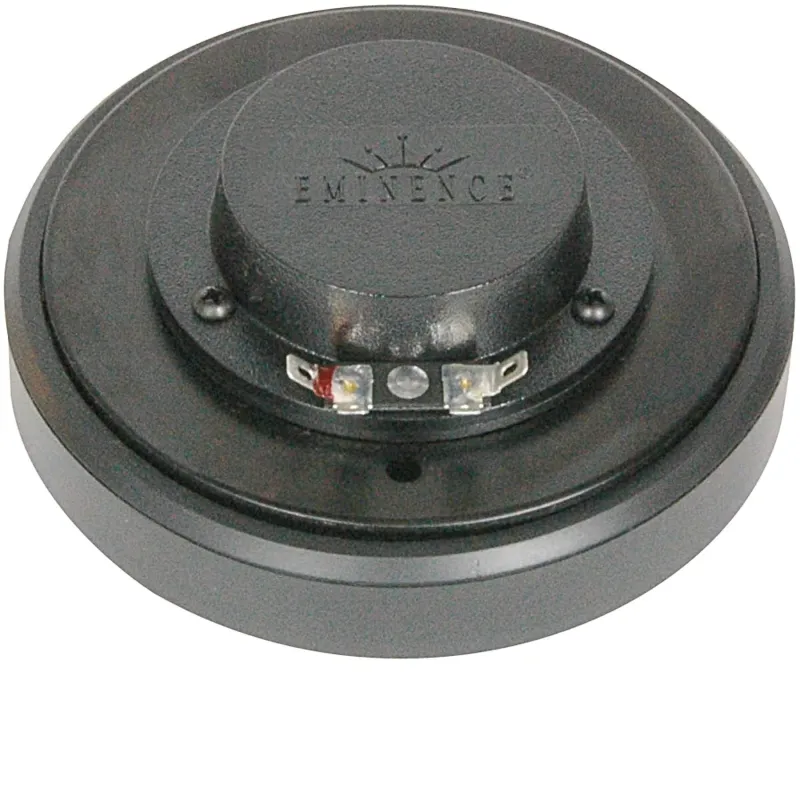

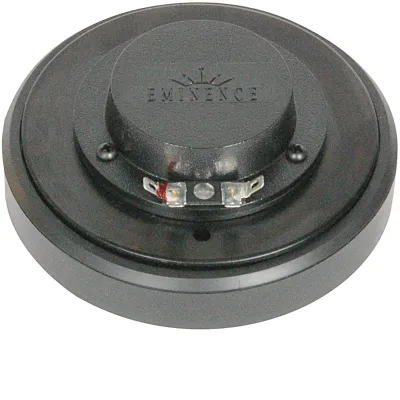

PSD 2002S-8 1" Throat Size HF Device - Type II

Throat Size

1", 25.4mm

Nominal Impedance*

8Ω

Minimum Impedance

7.9 ohm @ 2.9 kHz

Power Rating**

80 W (AES)

Resonance

0.54kHz

Usable Frequency Range

1200Hz-20kHz

Recommended Crossover

1.2 kHz / 12 dBkHz

Sensitivity***

105.1

Magnet Material

Ferrite

Magnet Weight

34oz, 0.96kg

Voice Coil Diameter

2" / 50.8mm

Voice Coil Former

Polyimide

Diaphragm Material

Titanium

DC Resistance (Re)

6.1Ω

Overall Diameter

5.25", 133.4mm

Driver Volume Displaced

0.01 cu.ft., 0.5 liters

Depth

2.8", 71.1mm

Weight

5.5 lbs, 2.5 kg

Mounting Thread

1 3/8 in. 18 ext.

Mounting Holes Diameter

N/A

Mounting Holes B.C.D.

N/A
