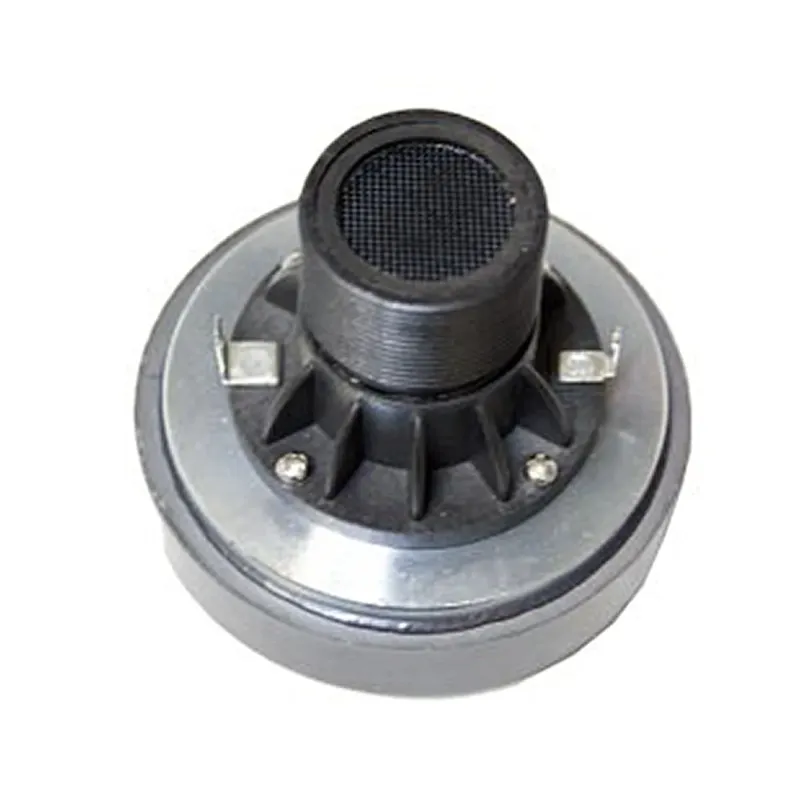

F110M-8 1" Throat Size HF Device
$34.99
$44.9922% offHF Device
The next addition to the Eminence compression driver family. The F110M-8 offers all the performance benefits of our new ring radiator devices in a smaller format which performs remarkably well on screw on type horns or coaxial woofers.
SPECIFICATION | |
Throat Size | 1", 25.4mm |
Nominal Impedance* | 8Ω |
Minimum Impedance | 5.5 ohm @ 7.9 kHz |
Power Rating** | 25 W (AES) |
Resonance | 1.2kHz |
Usable Frequency Range | 2000Hz-20kHz |
Recommended Crossover | 2 kHz @ 12 dBkHz |
Sensitivity*** | 108.4 |
Magnet Material | Ferrite |
Magnet Weight | 12oz, 0.34kg |
Voice Coil Diameter | 1" / 25.4mm |
Voice Coil Former | Polyimide |
Diaphragm Material | Mylar |
DC Resistance (Re) | 4.5Ω |
MOUNTING INFORMATION | |
Overall Diameter | 3.35", 85mm |
Driver Volume Displaced | 0.006 cu.ft., 0.18 liters |
Depth | 2.83", 72mm |
Weight | 1.71 lbs, 0.78 kg |
Mounting Thread | 1 3/8 in. 18 ext |
Mounting Holes Diameter | N/A |
Mounting Holes B.C.D. | N/A |
