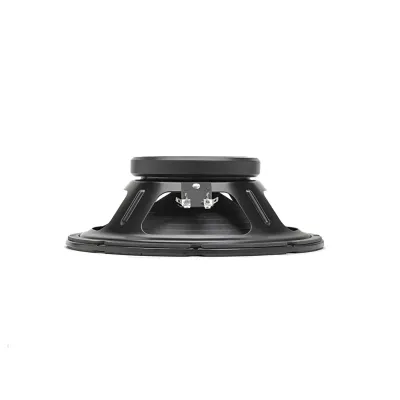

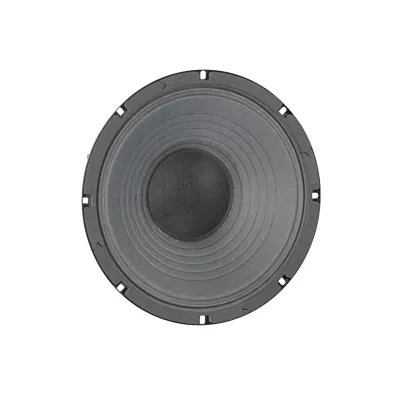

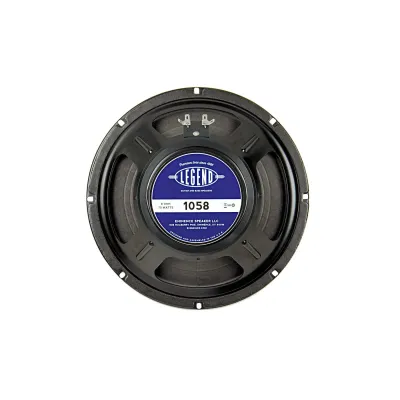

LEGEND 1058 10" Lead / Rhythm Guitar Speaker

The Eminence Legend 1058 guitar speaker takes classic tone a step further. Vintage American tone with punchy lows and warm, smooth, bluesy mids and highs. Fatter Legend 1028K tone with more depth.

Also, check out the COPPERHEAD 10" Lead / Rhythm Guitar Speaker

SPECIFICATION
Nominal Basket Diameter	10", 254 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	75 W
Resonance	97 Hz

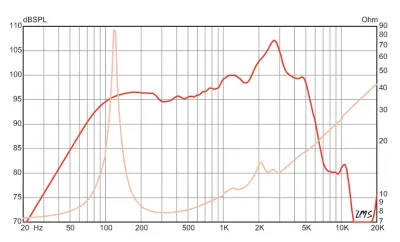

Usable Frequency Range	100 Hz - 5 kHz
Sensitivity*	98.7 dB
Magnet Weight	16 oz.
Gap Height	0.25", 6.4 mm
Voice Coil Diameter	1.5", 38 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	97 Hz
DC Resistance (Re)	7.49 Ω
Coil Inductance (Le)	0.56m H
Mechanical Q (Qms)	17.78
Electromagnetic Q (Qes)	1.21
Total Q (Qts)	1.13
Compliance Equivalent Volume (Vas)	26.4 liters / 0.93 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	0 cc
Mechanical Compliance of Suspension (Cms)	0.16 mm/N
BL Product (BL)	8 T-M
Diaphragm Mass Inc. Airload (MMs)	17 grams
Efficiency Bandwidth Product (EBP)	80
Maximum Linear Excursion (Xmax)	0 mm
Surface Area of Cone (Sd)	344.9 cm2
Maximum Mechanical Limit (Xlim)	N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.033 cu.ft. / 0.93 liters
Overall Diameter	10.11", 256.8 mm
Baffle Hole Diameter	9.13", 231.9 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.23", 5.8mm
Mounting Holes B.C.D.	9.6", 243.8mm
Depth	3.5", 88.9 mm
Net Weight	4.4 lbs, 2 kg
Shipping Weight	5.4 lbs, 2.45 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core

Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Solid composition felt dust cap
