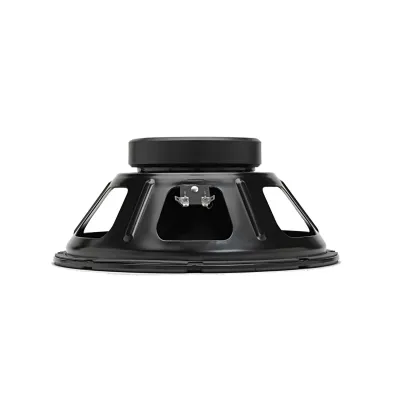

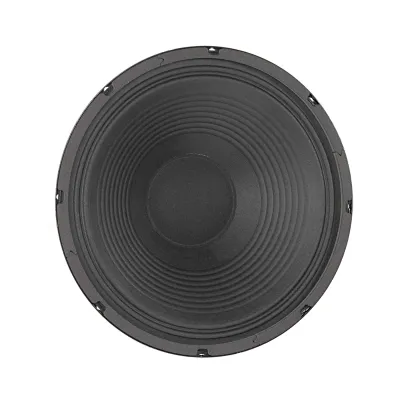

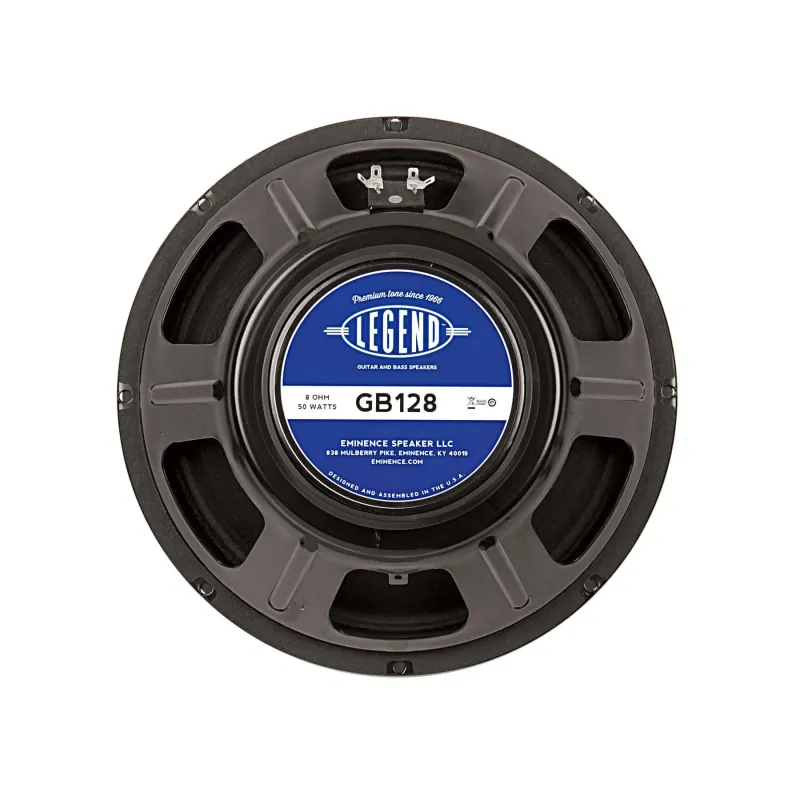

LEGEND GB128 12" Lead / Rhythm Guitar Speaker

$119.99

$154.9923% off

Legend Guitar

The Eminence Legend GB128 guitar speaker helps clean up your act. Cleaner British voiced tone with a full low end, warm, throaty mids and a very open top end. Turn up the volume and turn back the clock.

SPECIFICATION

Nominal Basket Diameter

12", 305 mm

Nominal Impedance*

8 Ω

Power Rating*

Program Power

N/A

Watts

50 W

Resonance

86 Hz

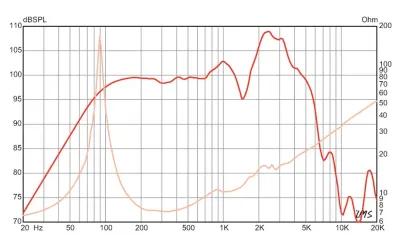

Usable Frequency Range

80 Hz - 5.1 kHz

Sensitivity*

101.3 dB

Magnet Weight

38 oz.

Gap Height

0.312", 7.9 mm

Voice Coil Diameter

1.75", 44 mm

THIELE & SMALL PARAMETERS

Resonant Frequency (fs)

86 Hz

DC Resistance (Re)

6.37 Ω

Coil Inductance (Le)

0.64m H

Mechanical Q (Qms)

19.54

Electromagnetic Q (Qes)

0.67

Total Q (Qts)

0.65

Compliance Equivalent Volume (Vas)

43.9 liters / 1.55 cu.ft.

Peak Diaphragm Displacement Volume (Vd)

40.5 cc

Mechanical Compliance of Suspension (Cms)

0.12 mm/N

BL Product (BL)

12 T-M

Diaphragm Mass Inc. Airload (MMs)

28 grams

Efficiency Bandwidth Product (EBP)

128

Maximum Linear Excursion (Xmax)

0.8 mm

Surface Area of Cone (Sd)

506.7 cm2

Maximum Mechanical Limit (Xlim)

N/A

MOUNTING INFORMATION

Recommended Enclosure Volume

Sealed

Acceptable

Vented

Acceptable

Driver Volume Displaced

0.071 cu.ft. / 2 liters

Overall Diameter

12.03", 305.6 mm

Baffle Hole Diameter

11.07", 281.2 mm

Front Sealing Gasket

Yes

Rear Sealing Gasket

Yes

Mounting Holes Diameter

0.25", 6.4mm

Mounting Holes B.C.D.

11.59", 294.4mm

Depth

5.1", 129.5 mm

Net Weight

8.1 lbs, 3.67 kg

Shipping Weight

10.1 lbs, 4.58 kgs

MATERIALS OF CONSTRUCTION

Coil Construction

Copper voice coil

Coil Former

Paper former

Magnet Composition

Ferrite magnet

Core Details

Non-vented core





Basket Materials

Pressed steel basket

Cone Composition

Paper cone

Cone Edge Composition

Paper cone edge

Dust Cap Composition

Zurette dust cap
