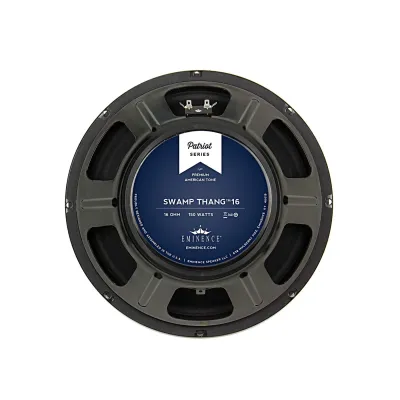

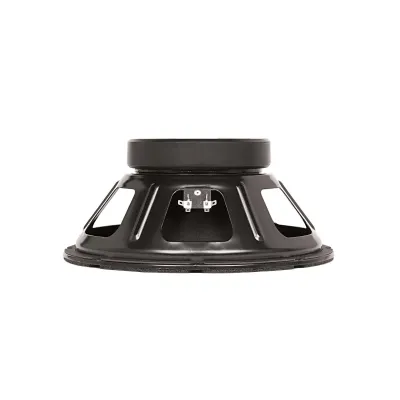

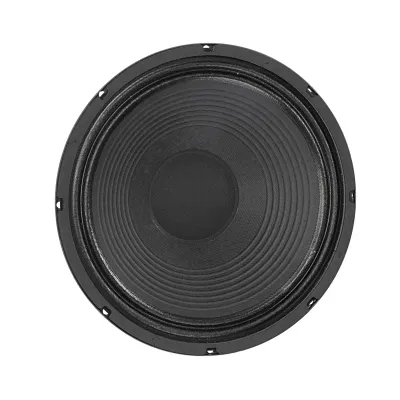

SWAMP THANG-16 12" Lead / Rhythm Guitar Speaker- American

Designed with heavier players in mind, the Swamp Thang provides a thick and chunky tone with loads of sustain. The awesome bottom end will hold up to even the most demanding drop-tune or 7 string players.

Also, check out the Swamp Thang 12" Lead / Rhythm Guitar Speaker - American

SPECIFICATION
Nominal Basket Diameter	12", 305 mm
Nominal Impedance*	16 Ω
Power Rating*
Program Power	N/A
Watts	150 W
Resonance	113 Hz
Usable Frequency Range	70 Hz - 5.1 kHz
Sensitivity*	102.3 dB
Magnet Weight	59 oz.
Gap Height	0.312", 7.9 mm
Voice Coil Diameter	2", 51 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	113 Hz
DC Resistance (Re)	14.7 Ω
Coil Inductance (Le)	0.67m H
Mechanical Q (Qms)	8.6
Electromagnetic Q (Qes)	0.67
Total Q (Qts)	0.62
Compliance Equivalent Volume (Vas)	26.4 liters / 0.93 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	42.6 cc
Mechanical Compliance of Suspension (Cms)	0.07 mm/N
BL Product (BL)	21.8 T-M
Diaphragm Mass Inc. Airload (MMs)	30 grams
Efficiency Bandwidth Product (EBP)	168
Maximum Linear Excursion (Xmax)	0.8 mm
Surface Area of Cone (Sd)	532.4 cm2
Maximum Mechanical Limit (Xlim)	N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.079 cu.ft. / 2.25 liters
Overall Diameter	12.03", 305.6 mm
Baffle Hole Diameter	11.07", 281.2 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.25", 6.4mm
Mounting Holes B.C.D.	11.59", 294.4mm
Depth	5.2", 132.1 mm
Net Weight	11.1 lbs, 5.03 kg
Shipping Weight	12.8 lbs, 5.81 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core

Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Zurette dust cap
