Nominal Basket Diameter

10", 254 mm

Nominal Impedance*

8 Ω

Power Rating*

N/A

20 W

Resonance

100 Hz

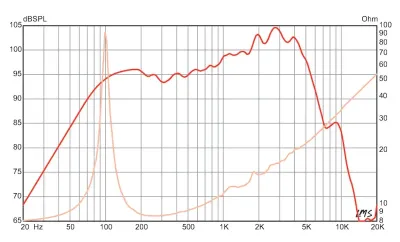

Usable Frequency Range

100 Hz - 5.5 kHz

Sensitivity*

98.2 dB

Magnet Weight

15 oz.

Gap Height

0.25", 6.4 mm

Voice Coil Diameter

1", 25 mm

Resonant Frequency (fs)

100 Hz

DC Resistance (Re)

7.58 Ω

Coil Inductance (Le)

0.48m H

Mechanical Q (Qms)

16.89

Electromagnetic Q (Qes)

1.38

Total Q (Qts)

1.28

Compliance Equivalent Volume (Vas)

33.49 liters / 1.18 cu.ft.

Peak Diaphragm Displacement Volume (Vd)

58.2 cc

Mechanical Compliance of Suspension (Cms)

0.18 mm/N

BL Product (BL)

7.05 T-M

Diaphragm Mass Inc. Airload (MMs)

14 grams

Efficiency Bandwidth Product (EBP)

72

Maximum Linear Excursion (Xmax)

1.59 mm

Surface Area of Cone (Sd)

366.1 cm2

Maximum Mechanical Limit (Xlim)

N/A

Recommended Enclosure Volume

Acceptable

Acceptable

Driver Volume Displaced

0.027 cu.ft. / 0.77 liters

Overall Diameter

10.11", 256.8 mm

Baffle Hole Diameter

9.13", 231.9 mm

Front Sealing Gasket

Yes

Rear Sealing Gasket

N/A

Mounting Holes Diameter

0.22", 5.6mm

Mounting Holes B.C.D.

9.6", 243.8mm

Depth

3.93", 99.7 mm

Net Weight

3.3 lbs, 1.5 kg

Shipping Weight

4.4 lbs, 2 kgs

Coil Construction

Copper voice coil

Coil Former

Paper former

Magnet Composition

Ferrite magnet

Core Details

Non-vented core

Basket Materials

Pressed steel basket

Cone Composition

Paper cone

Cone Edge Composition

Paper cone edge

Dust Cap Composition

Solid composition felt dust cap
