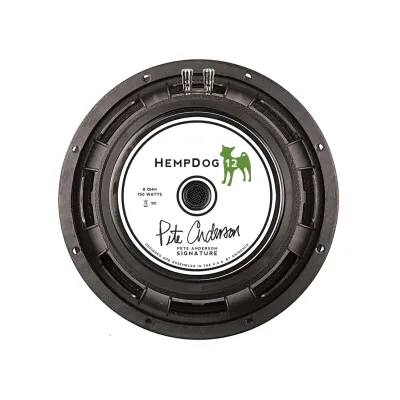

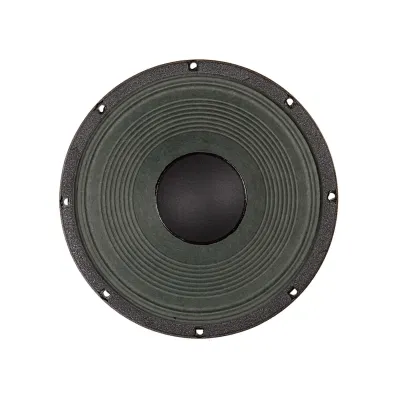

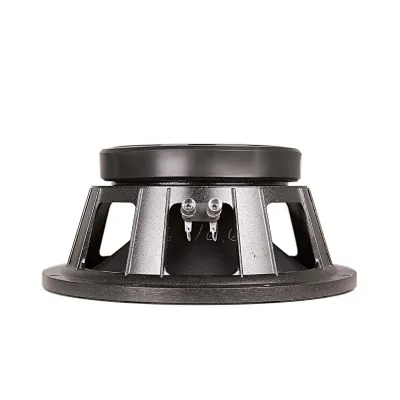

Hempdog 12 | 12" Pete Anderson Signature Guitar Speaker

Multi-platinum, Grammy Award-winning producer/guitarist Pete Anderson wanted to combine the tonal characteristics from two of his favorite Eminence speakers into a single 12" model. The HempDog 12 borrows the warmth from the Cannabis Rex, and the neutral, clear tone from the Legend EM12.

"The creation of the HempDog has exceeded my expectations. It has the hi-fidelity I require plus the warmth of hemp, an outstanding combination that covers all genres of music." — Pete Anderson

We also have the 820H 8" Lead / Rhythm Guitar Speaker - Hemp

SPECIFICATION
Nominal Basket Diameter	12", 0 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	150 W
Resonance	69 Hz
Usable Frequency Range	80 Hz - 3.8 kHz
Sensitivity*	102.3 dB
Magnet Weight	80 oz.
Gap Height	0.375", 9.5 mm
Voice Coil Diameter	2.5", 64 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	69 Hz
DC Resistance (Re)	6.55 Ω
Coil Inductance (Le)	0.41m H
Mechanical Q (Qms)	10.02
Electromagnetic Q (Qes)	0.36
Total Q (Qts)	0.35
Compliance Equivalent Volume (Vas)	74.33 liters / 2.62 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	69.3 cc
Mechanical Compliance of Suspension (Cms)	0.18 mm/N
BL Product (BL)	15.23 T-M
Diaphragm Mass Inc. Airload (MMs)	30 grams
Efficiency Bandwidth Product (EBP)	191
Maximum Linear Excursion (Xmax)	1.27 mm
Surface Area of Cone (Sd)	545.4 cm2
Maximum Mechanical Limit (Xlim)	0 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	N/a
Vented	N/a
Driver Volume Displaced	0.003 cu.ft. / 0.09 liters
Overall Diameter	12.38", 314.5 mm
Baffle Hole Diameter	11.07", 281.2 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.26", 6.6mm
Mounting Holes B.C.D.	11.57", 293.9mm
Depth	5.38", 136.7 mm
Net Weight	16.3 lbs, 7.39 kg
Shipping Weight	18 lbs, 8.16 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Edge Wound Aluminum
Coil Former	Polyimide former
Magnet Composition	Ferrite magnet
Core Details	Vented core

Basket Materials	Die-cast aluminum basket
Cone Composition	Hemp paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Paper dust cap
