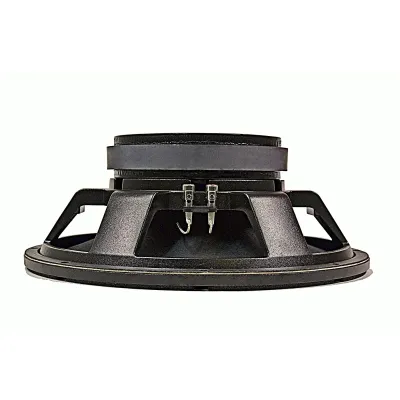

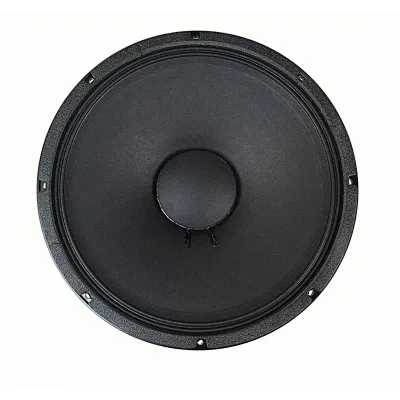

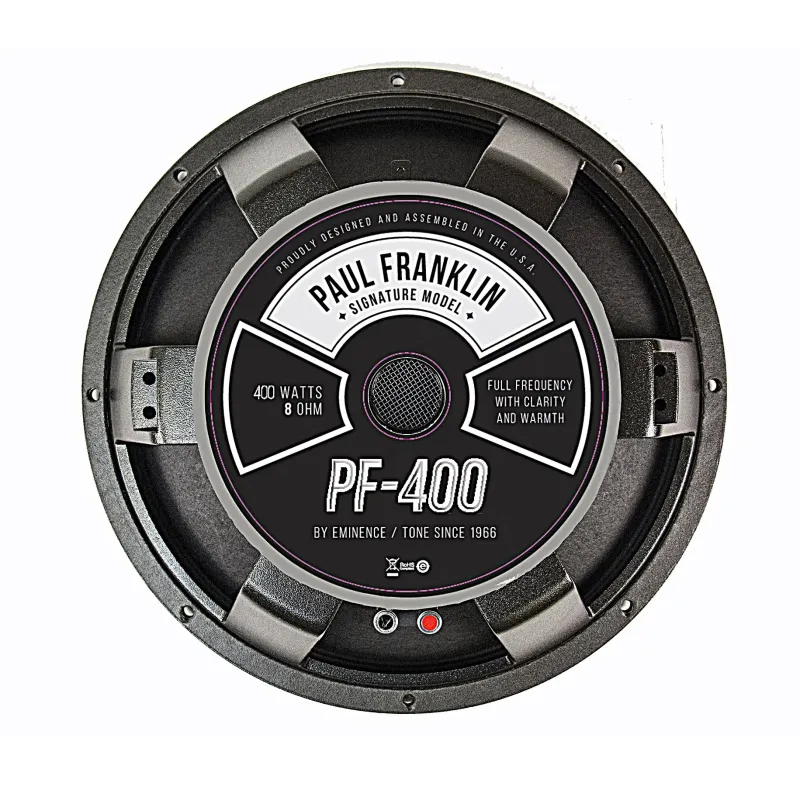

PF-400 15" Signature Guitar Speaker
$269.99
$309.9913% offSignature
15" version of the poplular PF-350 12". Offering complete tonal balance from top to bottom, this attack-sensitive and powerful 15 inch model was co-developed with veteran session and touring pro Paul Franklin. With headroom to spare, the PF-400?s tone transfers from low volume to very loud with warmth and clarity, making it ideal for pedal steelers and 6-stringers alike.
SPECIFICATION | |
Nominal Basket Diameter | 15", 381 mm |
Nominal Impedance* | 8 Ω |
Power Rating* | |
Program Power | N/A |
Watts | 400 W |
Resonance | 58 Hz |
Usable Frequency Range | 60 Hz - 3.6 kHz |
Sensitivity* | 102 dB |
Magnet Weight | 109 oz. |
Gap Height | 0.285", 7.2 mm |
Voice Coil Diameter | 4", 102 mm |
THIELE & SMALL PARAMETERS | |
Resonant Frequency (fs) | 58 Hz |
DC Resistance (Re) | 7.45 Ω |
Coil Inductance (Le) | 0.46m H |
Mechanical Q (Qms) | 6.37 |
Electromagnetic Q (Qes) | 0.55 |
Total Q (Qts) | 0.5 |
Compliance Equivalent Volume (Vas) | 120.85 liters / 4.27 cu.ft. |
Peak Diaphragm Displacement Volume (Vd) | 70.3 cc |
Mechanical Compliance of Suspension (Cms) | 0.11 mm/N |
BL Product (BL) | 18.33 T-M |
Diaphragm Mass Inc. Airload (MMs) | 67 grams |
Efficiency Bandwidth Product (EBP) | 106 |
Maximum Linear Excursion (Xmax) | 0.79 mm |
Surface Area of Cone (Sd) | 889.6 cm2 |
Maximum Mechanical Limit (Xlim) | 0 mm |
MOUNTING INFORMATION | |
Recommended Enclosure Volume | |
Sealed | N/a |
Vented | N/a |
Driver Volume Displaced | 0.152 cu.ft. / 4.31 liters |
Overall Diameter | 15.28", 388.1 mm |
Baffle Hole Diameter | 14.06", 357.1 mm |
Front Sealing Gasket | Yes |
Rear Sealing Gasket | Yes |
Mounting Holes Diameter | 0.26", 6.6mm |
Mounting Holes B.C.D. | 14.57", 370.1mm |
Depth | 6", 152.4 mm |
Net Weight | 22.6 lbs, 10.25 kg |
Shipping Weight | 24.8 lbs, 11.25 kgs |
MATERIALS OF CONSTRUCTION | |
Coil Construction | Edge Wound Aluminum |
Coil Former | Polyimide Former |
Magnet Composition | Ferrite magnet |
Core Details | Vented core |
|
|
Basket Materials | Die-cast aluminum basket |
Cone Composition | Paper cone |
Cone Edge Composition | Coth edge |
Dust Cap Composition | Paper dust cap |
