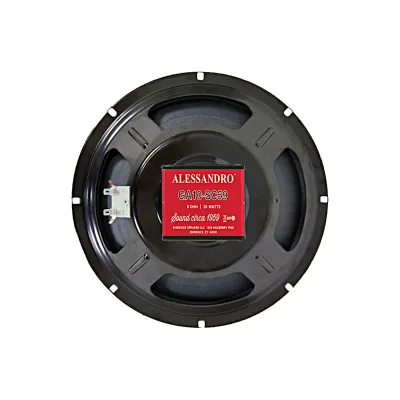

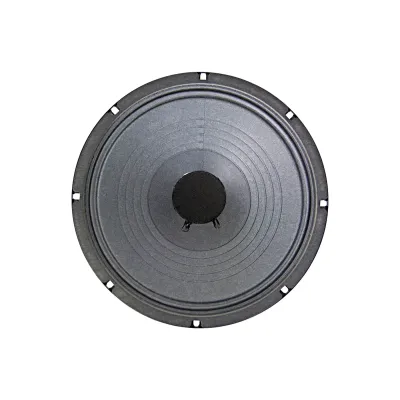

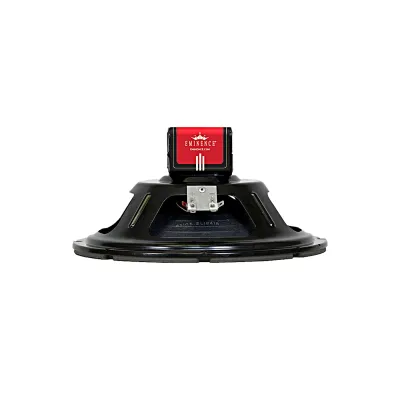

GA10-SC59 10" Signature Guitar Speaker

Circa 1959 tone in a vintage American alnico magnet design approved by George Alessandro. Tight, punchy, percussive lows and top end chime with sparkle. A nice bright musical Tweed tone.

We also have the GA12-SC59 12" Signature Guitar Speaker

SPECIFICATION
Nominal Basket Diameter	10", 254 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	20 W
Resonance	102 Hz

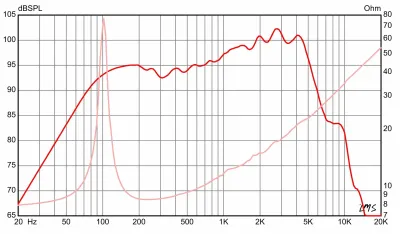

Usable Frequency Range	100 Hz - 5.3 kHz
Sensitivity*	97 dB
Magnet Weight	6 oz.
Gap Height	0.25", 6.35 mm
Voice Coil Diameter	1", 25 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs)	102 Hz
DC Resistance (Re)	7.58 Ω
Coil Inductance (Le)	0.44m H
Mechanical Q (Qms)	19.66
Electromagnetic Q (Qes)	1.67
Total Q (Qts)	1.54
Compliance Equivalent Volume (Vas)	27.91 liters / 0.99 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	58.21 cc
Mechanical Compliance of Suspension (Cms)	0.15 mm/N
BL Product (BL)	6.94 T-M
Diaphragm Mass Inc. Airload (MMs)	17 grams
Efficiency Bandwidth Product (EBP)	61
Maximum Linear Excursion (Xmax)	1.59 mm
Surface Area of Cone (Sd)	366.1 cm2
Maximum Mechanical Limit (Xlim)	0 mm
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.027 cu.ft. / 0.77 liters
Overall Diameter	10.11", 256.8 mm
Baffle Hole Diameter	9.13", 231.9 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	Yes
Mounting Holes Diameter	0.22", 5.6mm
Mounting Holes B.C.D.	9.6", 243.8mm
Depth	4.8", 121.9 mm
Net Weight	2.9 lbs, 1.32 kg
Shipping Weight	4 lbs, 1.81 kgs
MATERIALS OF CONSTRUCTION
Coil Construction	Copper voice coil
Coil Former	Paper former
Magnet Composition	Alnico magnet
Core Details	Non-vented core

Basket Materials	Pressed steel basket
Cone Composition	Full molded Paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Solid composition felt dust cap
